Weather station

Davis Pro2 Plus

Davis Vantage Pro 2 with solar and UV sensors
This replaced an Oregon Scientific WMR928 which had been operating since 2003

54.31 N
4.54 W
30 m

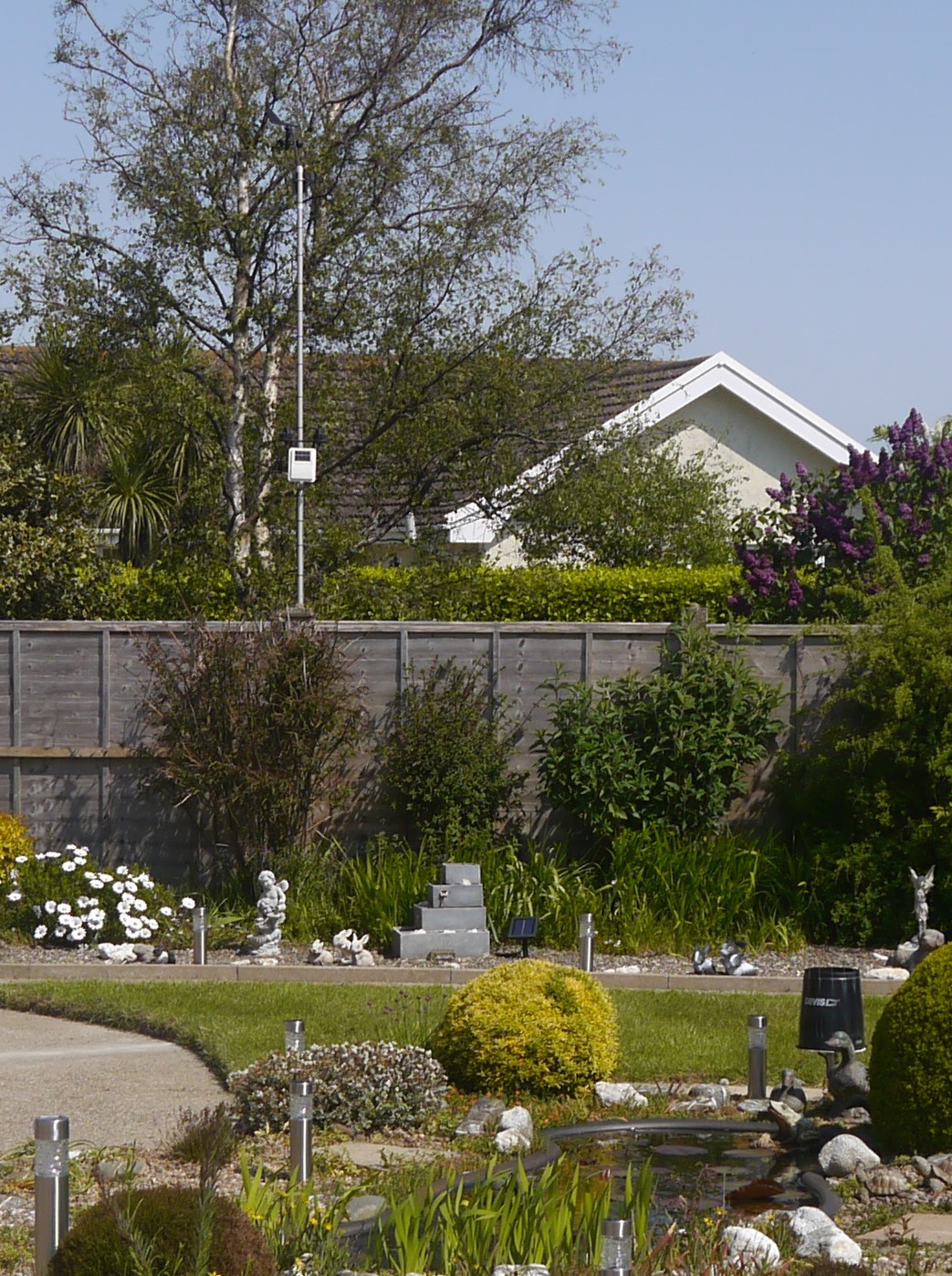

Most parts are mounted to a 4m pole attached to a concrete fence post the rain gauge was separated and is mounted near the pond
In operation since: 01.04.2011 (4781 days)
Console - Mains with backup 3xC batteries , sensors solar panel
2000 records
Temperature: every 30s
Wind: every 10s
Console connects via IP interface to PC
Netgear, ADSL 16 Mbit/s
Meteotemplate
Axis 211
http://www.hc-iom.co.uk/weather/axis.jpg



Range: 0°C - 50°C
Resolution: 0.1°C
Accuracy: +/- 0.2°C

The indoor thermometer is part of the indoor console.
Range: 0% - 100%
Resolution: 0.1%
Accuracy: +/- 1%

The indoor humidity sensor is part of the indoor console.
The outdoor thermometer sensor is mounted on the north side of a fence.
The outdoor humidity sensor is part of the thermometer sensor.
The pressure sensor is part of the indoor console.
The wind speed sensor is mounted 4m off the ground on a pole.
The wind direction sensor is mounted 4m off the ground on a pole.
The rain gauge is sited near the pond about 1 ft off the ground and wired back to the ISS.
The solar sensor is mounted on the same pole as the wind sensors and is about 2.5m off the ground.
The UV sensor is mounted on the same pole as the wind sensors and is about 2.5m off the ground.
